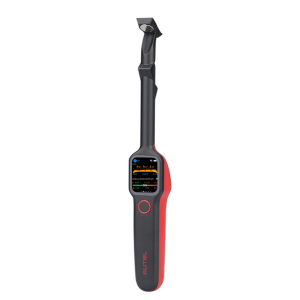

MaxiTPMS TBE200
€595.00
The MaxiTPMS TBE200 is a laser-enabled tire tread depth & brake disc wear examiner that provides users with quick and accurate wear measurements. Measure brake disc wear without having to remove tires. It features a 1.65” AMOLED super retina touchscreen, displaying measurement data curves in real-time. TBE200 provides uneven wear analysis and detailed replacement & maintenance suggestions for quick tire service. The TBE200 dual cameras enable users to document tire wear and damage and scan Tire Identification Number (TIN). Use the tool separately, or with ITS600 to view and print detailed TPMS reports.
- Description
- Size Guide
- Reviews (0)
Description
LASER MEASUREMENT
• Tire tread depth & brake disc wear check in one tool, no need to remove the wheel during the measurement
• Laser measurement with 0.1mm accuracy
• Full tread measurement
• Quick Check both tread depth & brake disc
REAL-TIME TIRE HEALTH ANALYSIS
• Real-time measurement data on touchscreen
• Measurement data curve display
• Uneven wear analysis
• Test detail for single tire tread/brake disc
• Detailed replacement & maintenance suggestions (tire/brake disc replacement, tire rotation/alignment servicing)
• Scan DOT, tire expiration notice, tire recall lookup
• Take photos of tire wear & damage
COMPREHENSIVE TEST REPORT
• Comprehensive Test Report: TPMS health, Tire tread depth & brake disc wear characteristics & Repair tips (Requires ITS600)
Specifications:
| Recommended Use | Indoor |
| Processor | 4x ARM Cortex-A35 (1.5 GHz) |
| Memory | 1GB RAM LPDDR3 & 4GB ROM |
| Display | 1.65-inch AMOLED capacitive touchscreen with 348×442 resolution |
| Connectivity | • Wi-Fi • USB 2.0, Type C |
| Camera | CMOS WXGA, 1 megapixel & 8 megapixel, 30fps |
| Audio output | Output: Beep |
| Power and Battery | • 3.7 V/3000 mAh 18650 lithium-ion battery • Charges via 5 V AC/DC power supply |
| Tested Battery Life | Around 8 hours of continuous use |
| Battery Charging Input | 5 V/1.5 A |
| Power Consumption | 300 mA (AMOLED on with default brightness) @3.7 V |
| Operating Temp. | -10 to 45°C(14 to 113°F) |
| Storage Temp. | -20 to 60°C (-4 to 140°F) |
| Dimensions (W x H x D) | 283.0 mm (11.14”) x 39.0 mm (1.54”) x 33.5 mm (1.32”) |
| Net Weight | 188 g (0.41 lb.) |
| Protocols | ISO9141-2, ISO14230-2, ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850PWM, ISO11898 (Highspeed, Middlespeed, Low-speed and Singlewire CAN, fault-tolerant CAN), SAE J2610, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6 |
- Accessories:
-
Main Unit -
Calibration Table
-
Power Adapter
-
Type C USB Cable
Main Unit
Calibration Table
Power Adapter
Type C USB Cable-
Quick Reference Guide
-
Packing List
-
Carrying Case
Quick Reference Guide
Packing List
Carrying Case
